IEC 60870-5-104 Protocol Server Simulator

IEC 60870-5-104 Protocol RTU Server Simulator developed to test the functionalities of IEC 60870-5-104 stack server Operation.
we can simulate complete iec 104 protocol IED device including file transfer operation and all typeos ASDU Commands.
the stack to run multiple hardware platform (windows, Linux, RTLinux, QNX..). So we had to test multiple platform. At that time, our engineers developed the test simulation application.
We tested IEC 104 Server simulator with multiple test software available in the market.

Our support team has young, dynamic and professional team of engineers. Our Engineers will provide the quick and accurate solution as per customer requirement.
We can add up to 50 server node in the simulator. Every server node will work independently.

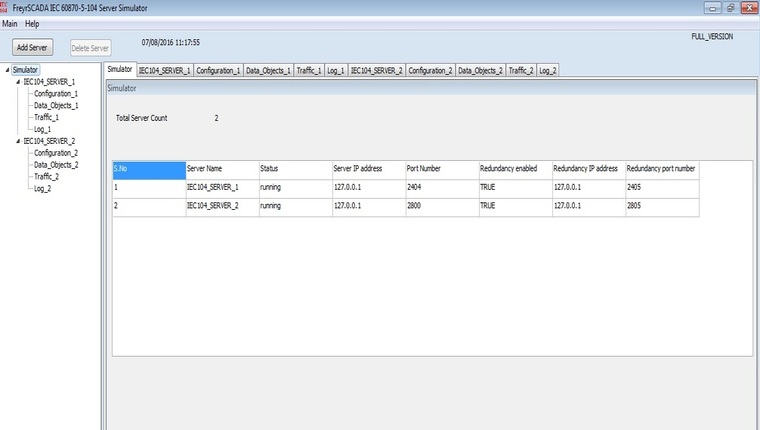

Simulator window shows the status & connection ip address, port number, redundancy enabled or not,If Redundancy enabled it shows, the redundant source ip address, port .
The user can update the monitoring Point information. The following parameters can change Value and quality bits.

Gallery





Features

  • Multiple Server Simulation
  • In a Single Server(link) simulate Multiple Stations (Common Address)
  • Redundancy Enabled
  • Mapping of Control Point to monitor Information point, consider C_SC point can map to M_SP point
  • Communication with redundant control systems and interruption-free switchover between redundant systems
  • Supports "select-before-operate" or "direct-execute" command execution modes
  • Supports File Transfer(both Monitor and Control Direction), Directory commands
  • On-demand transmission (e. g. single indications, analogs...)
  • Spontaneous transmission (e. g. single indications with time tag ...)
  • Clock synchronization

Minimum system requirements:

  • Windows XP, Vista, Windows 7, 8 and 10

You can also try our Client Simulator, IEC 60870-5-104 Windows SDK , and IEC 60870-5-104 Linux SDK

Knowledge Base

Interoperability

IEC 60870-5-104 Protocol RTU IED Server Interoperability

Licensing

  • Perpetual
  • One-time payment, royalty-free
  • Neither license manager nor dongle required

Simulator License model:

In this License model, We deliver Simulator Installer for Windows Operating System.
The Customer can use the software company wide. Customer can install the software in many systems.
There is no restriction like Hardware key (Dongle) and software key.



Download Free Evaluation Kit - IEC 60870-5-104 Protocol Development Bundle

In the Development Bundle, We included IEC 104 Protocol Server Client Simulator, Windows and Linux SDK, C# projects, Doxygen documentation and Raspberry Pi, BeagleBone Demo library.
